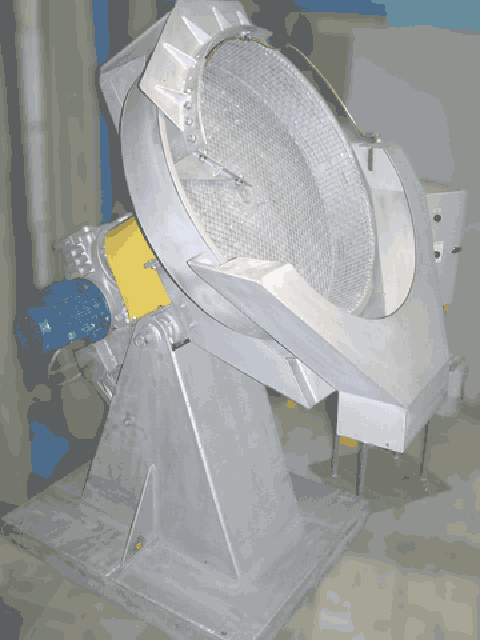

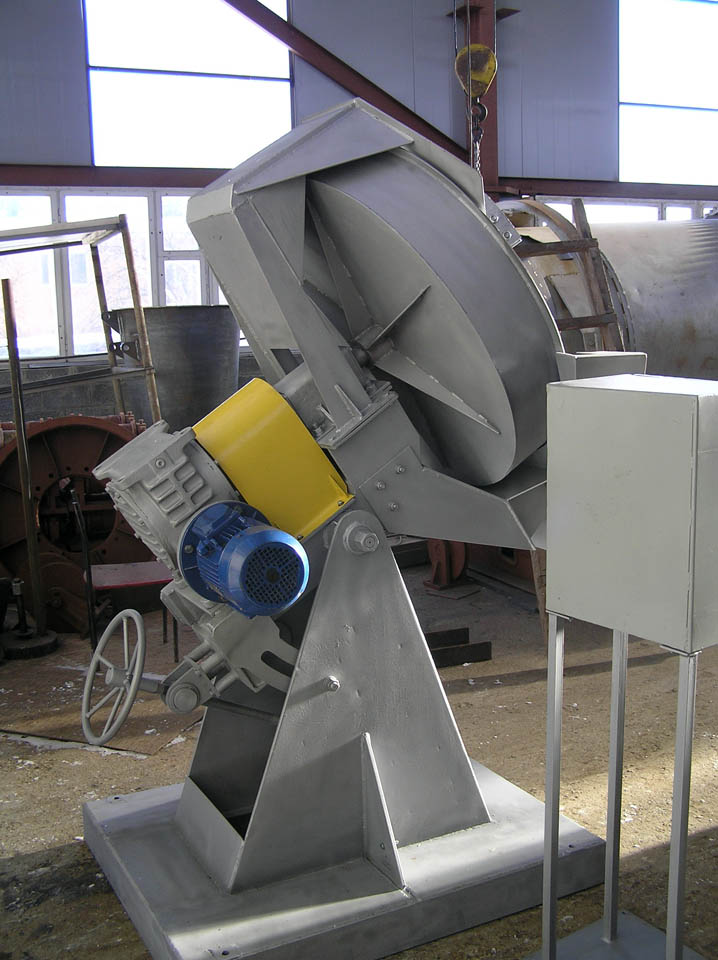

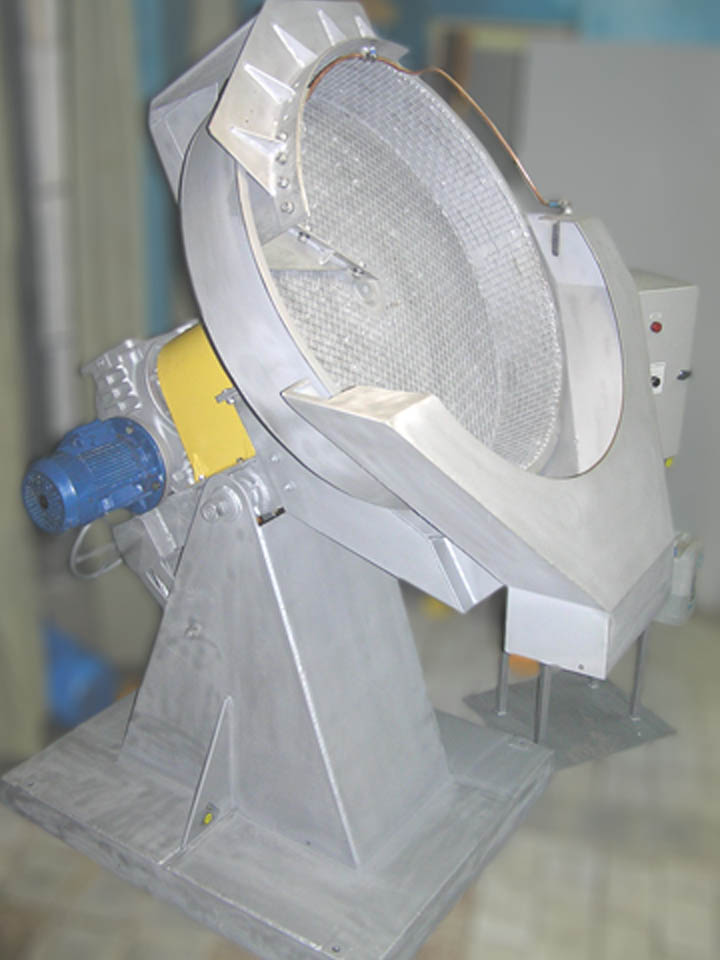

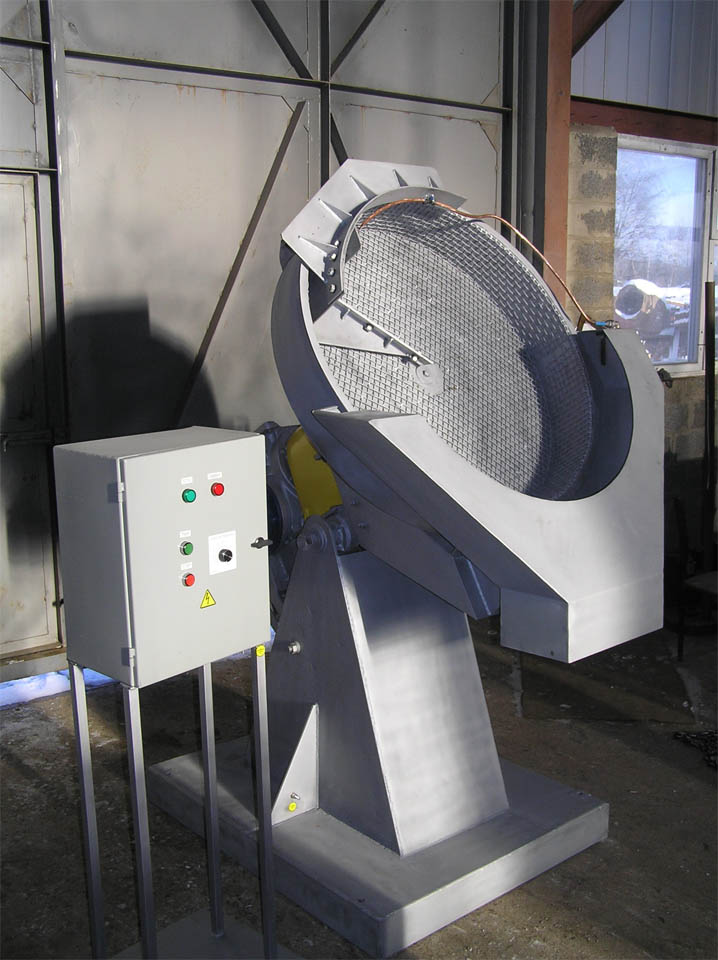

The pelletizing disk OKT 1000/2.2 provides pelletization of fine ore materials with addition of binders.

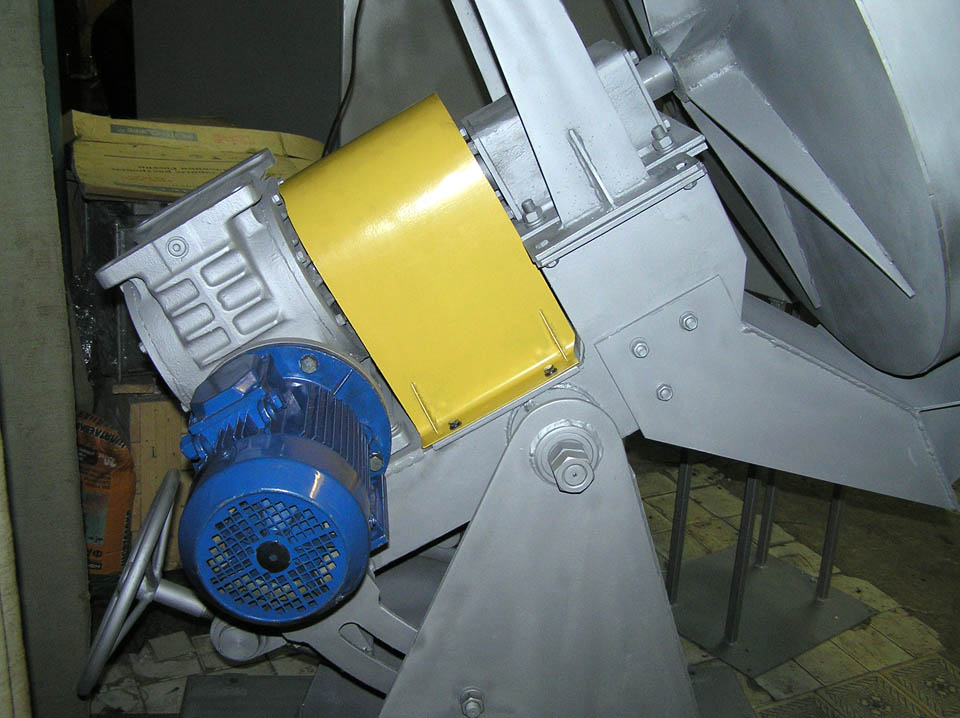

Structure of the pelletizer provides modulating control of disk rotation within a given range. The pelletizer is equipped with the mechanism for manual regulation of disk tilt providing maximum efficiency of technological operation.

Performance specification:

Rated production capacity - 1000 kg/h
Pellet diameter - (10 – 25) mm
Disk diameter - 1000 mm
Height of disk freeboad - 180 mm
Speed of disc rotation - (5 - 20) rpm
Dimensions (without electrical equipment) – not more than 1500×1500×1600 mm
