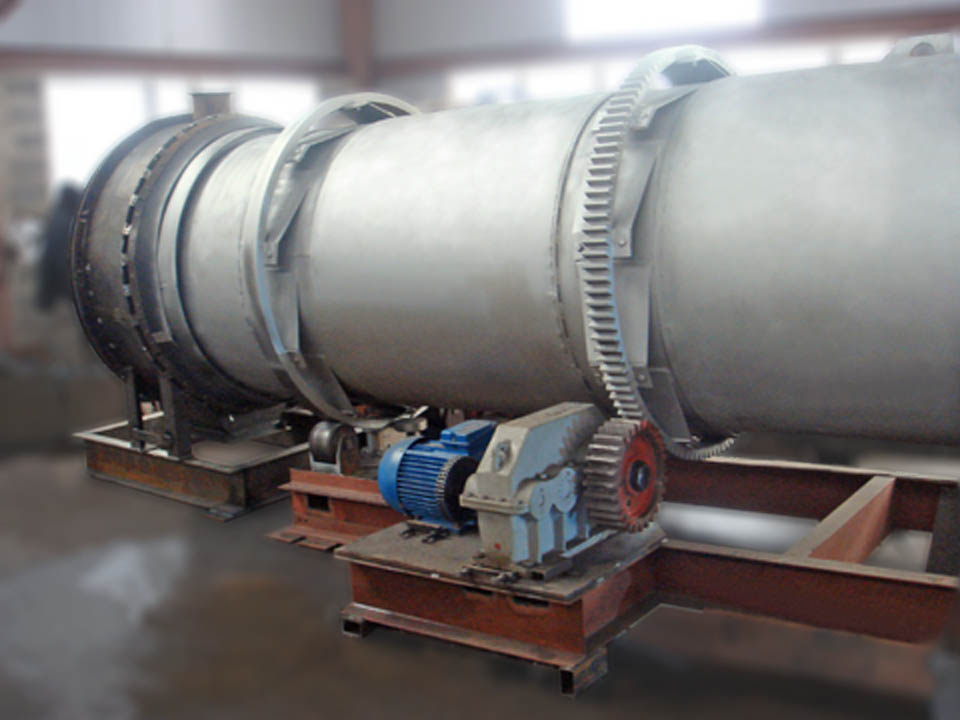

Drying rotary kiln PCV -1.2/1.4×5.4 for drying of lead containing materials obtained as a result of handling and processing of electric accumulators.
Lead concentrate is dried with a gas burner WL30.
This drying kiln can be used for drying of other free-running material (with exception of explosive and inflammable ones).
Technical specifications
Drum capacity of lead concentrate – 5 t
Drum volume - 6,1 m3
Size of drum – 5400 × 1200/1400 mm
Moisture release rate – (64-192) kg Í2Î/h
Temperature of drying agent – (650-680)°Ñ
Drum rotation (steplessly variable) speed – (0,4 – 1,5) rpm
